Balloons will study weather phenomena

Meteorologists know that the equator is home to the most powerful weather phenomena on Earth. These phenomena can be felt all the way at the North and South Poles, yet they remain largely a mystery. So far, few studies have been conducted on how the troposphere and stratosphere interact along the equatorial belt.

That is set to change thanks to an international project called Strateole-2, launched under a French initiative (CNES and CNRS). The project team will collect data using pressurized, high-altitude balloons developed by CNES. Two strings of twenty balloons each will be sent up from the Indian Ocean three years apart; each string will make two or three trips around the world over a period of three months. The goal will be to obtain the information needed to better understand equatorial weather phenomena, test the researchers’ models and check the results of computer simulations.

Balloon's route plan

Harvesting data

The balloons consist of a transparent, helium-filled sphere either 11 or 13 meters in diameter, a basket that serves to control the balloon’s flight and a second basket containing an array of measurement instruments. The instruments were designed to withstand the low air pressure and temperature (–85°C) that they will encounter so high up. The balloons will collect a wealth of data on air humidity, ozone and CO2 concentrations, the presence of ice particles, ambient temperatures and pressures, and so on. Some data – like air temperature, pressure and wind speed – will be sent almost in real time to the World Meteorological Organization (WMO) in order to improve its tropical weather forecasts.

Custom-built solar panels

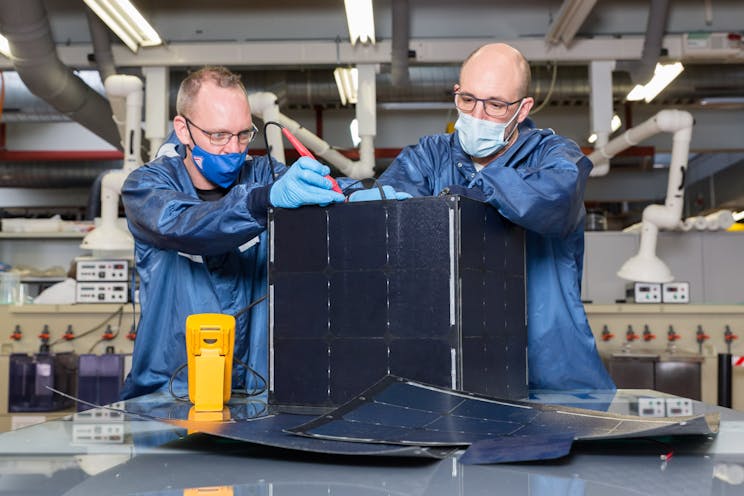

To power the balloons and onboard instruments, engineers at CSEM developed special solar panels made out of proprietary ultralight composites. Each basket will hold four to six solar panels in the shape of a square or a trapezoid, and each panel will have nine to twelve solar cells. The biggest panels will have a capacity of 40 W, and the smallest, 30 W. The panels are currently being fabricated at CSEM’s workshops in Innoparc, which is located in Hauterive in the Canton of Neuchâtel.

“The solar panels are subject to really demanding technical specifications. Not only do they have to be small and lightweight – around a few kg/m², or nearly 10 times lighter than standard models – they must also be able to withstand the stratosphere’s extreme conditions, such as very low temperatures, extreme heat cycles and significant UV radiation,” says Xavier Bulliard, the engineer who heads the Strateole-2 project at CSEM. Pierrick Duvoisin, a design expert at CSEM who is working on the project, adds: “It was a real technical challenge to develop a low-weight system that delivers high performance and reliability in an environment as hostile as the stratosphere. Most vessels just pass through the stratosphere, like when rockets are launched. But these balloons will stay there a few months.”
